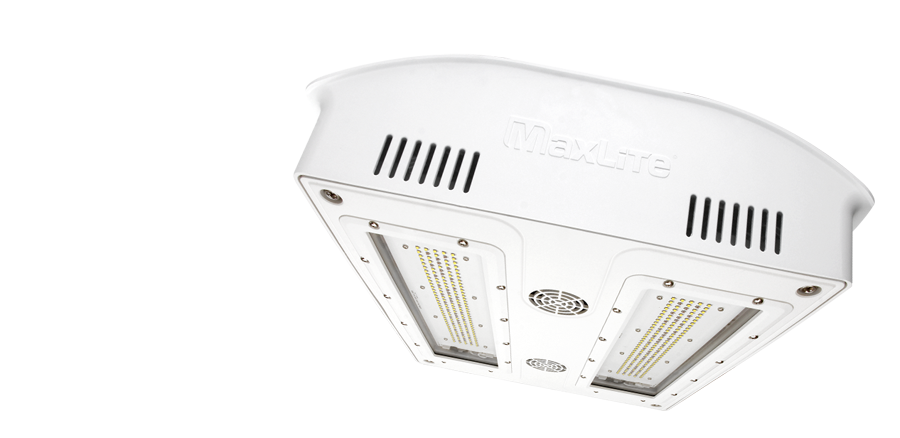

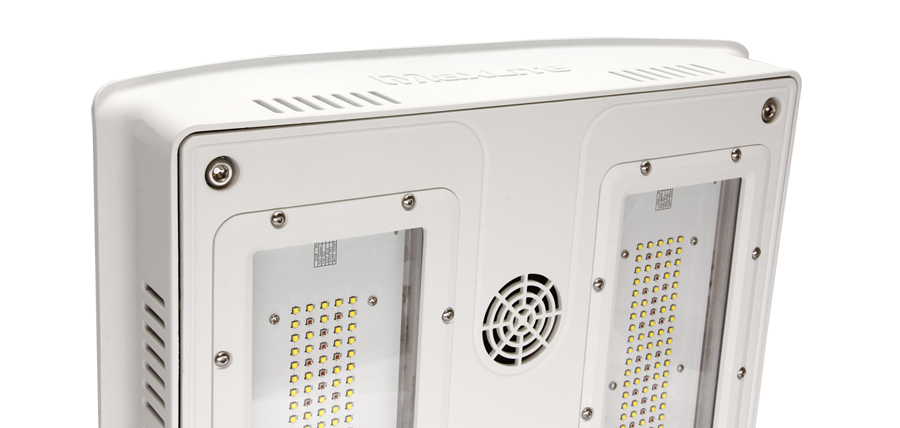

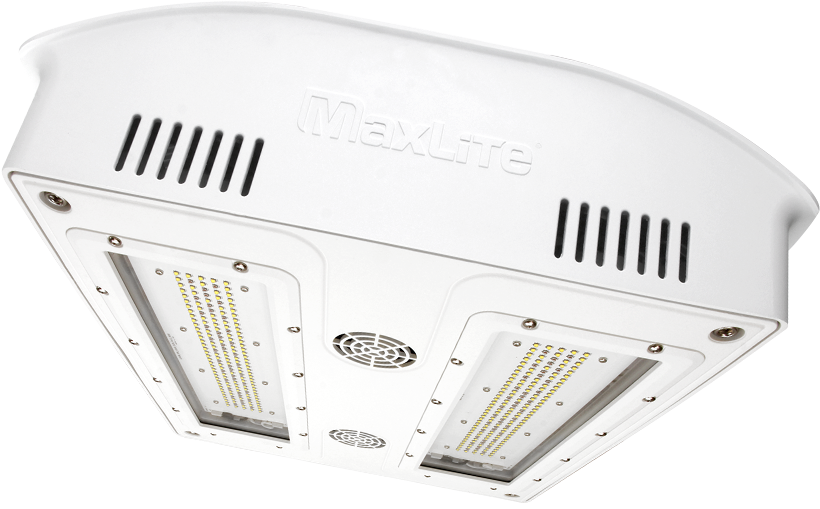

Horticulture LED Spot Light
Data SheetProduct Page
PhotonMax Spotlight Video
High Standards
- 1st with DLC Horticulture   Learn More
- 1st with UL Performance   Learn More
CONTACT US!

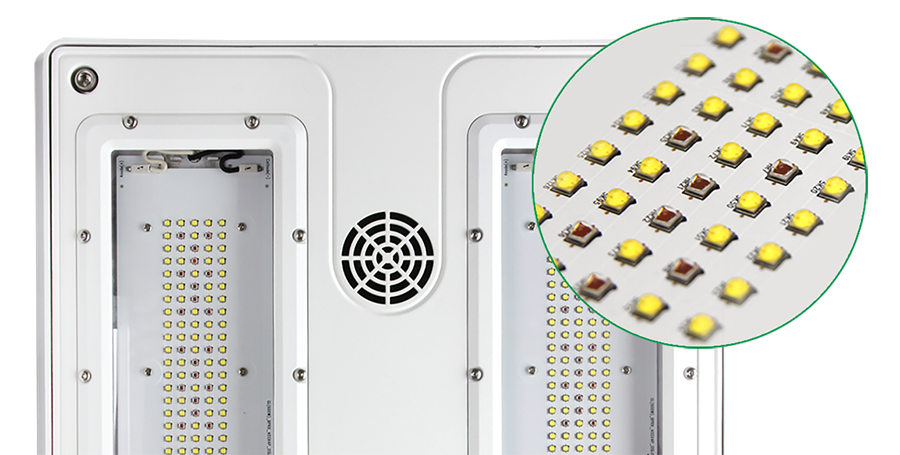

Performance
- High light output, PPF up to 1,358 µmol/s
- High efficiency up to 2.3 µmol/J
- 4 spectrum distributions to chose from
CONTACT US!
Spectrum
MaxLite’s PhotonMax GH Series line, offer’s 4 Science-based spectra solutions, available in 600W, 360W, and covering the voltage ranges from 120-277V and 347-480V.


BPRX-Broad Par with Heavy 660NM

MaxLite’s most comprehensive spectrum, a full spectrum solution with a beautiful color at 4200K, offers cultivars the ability to target the most effective portions of the PAR (400-500) and (600-700) driving photosynthesis with a clean white light.  The BPRX spectrum is the best of both worlds with a PAR focused spectrum that alleviates the need for additional lighting for general plant care and crop maintenance

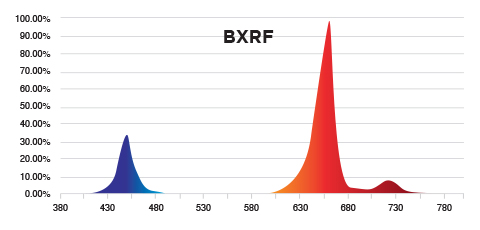

BXRF-Blue 450nm with Heavy Red 660nm and Far Red 730nm

Our most photosynthetically efficient spectrum that focuses on driving photosynthesis at a very high level.   Offering a focused spectrum in the red (600-700NM) and blue (400-500) regions.  Also including far red (700-750) for its ability to drive certain photomorphogenic responses.

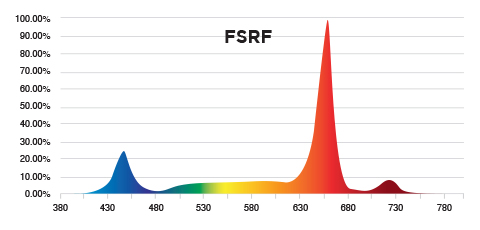

FSRF-Full Spectrum with Heavy Red 660nm and far red 730nm

MaxLite’s full spectrum solution for those looking for a photosynthetically efficient focused spectrum, while at the same time FSRF’s spectrum allows growers to adequately asses their crops visually. Including far red, for those looking for the benefits in the (700-750) range for driving certain photomorphogenic responses.  Offering a balanced spectrum from 400-730 NM for driving crop growth.  This spectrum can be used as sole source and as supplemental lighting in a greenhouse.

This spectrum can be used as sole source and as
supplemental lighting in a greenhouse.

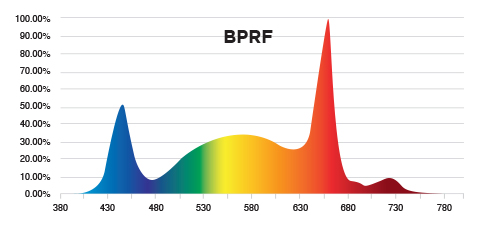

BPRF-Broad Par with Heavy 660nm and Far Red 730nm

A comprehensive spectrum solution, similar to the MaxLite BPRX spectrum with 730nm included.  Allows users to take advantage of far red, for driving certain photomorphogenic responses in various plant species while providing all of the same benefits of our BPRX spectrum.

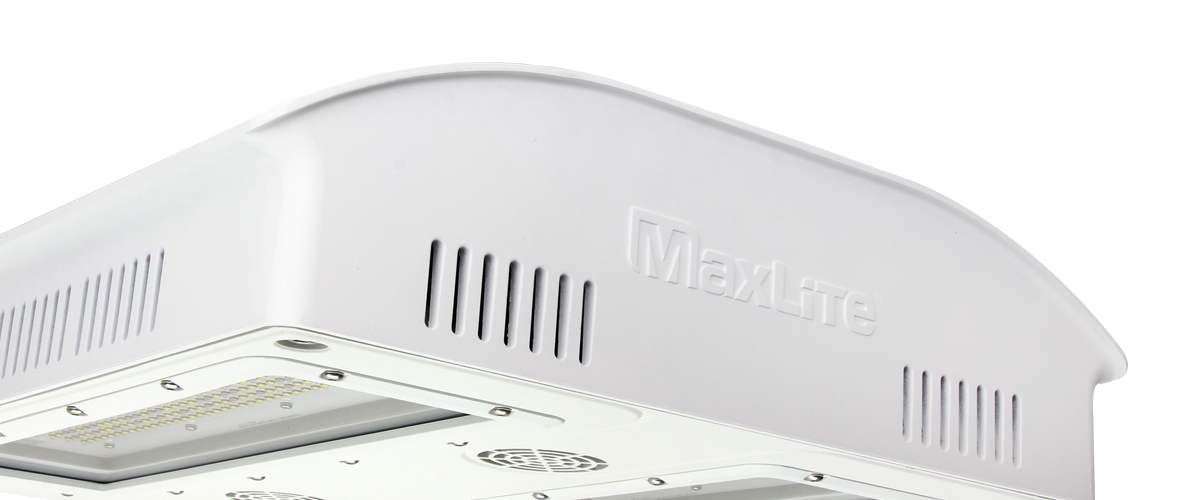

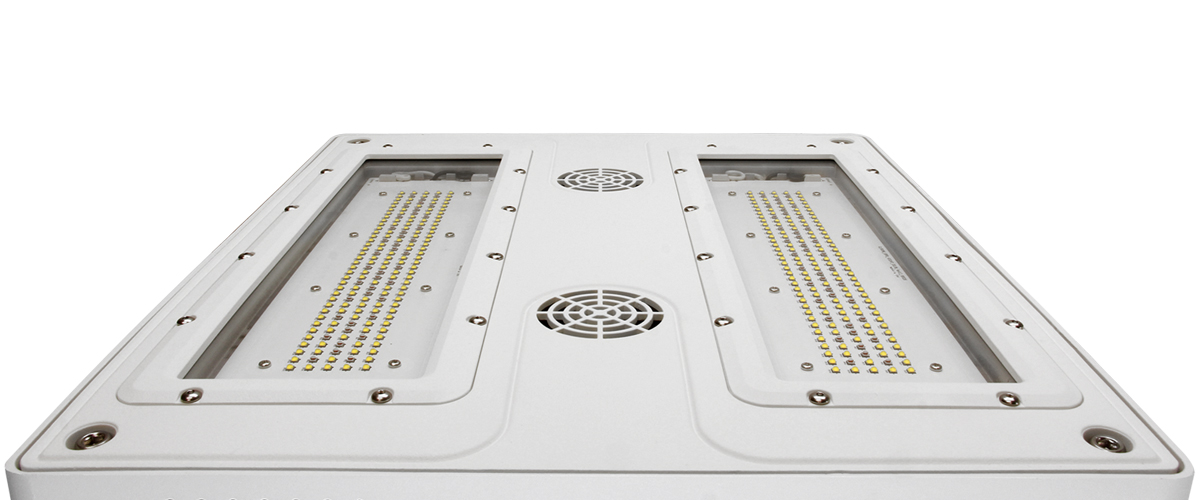

Design
- Designed in the U.S.A. by Horticulture Lighting Engineers
- Specifically designed to optimize LED performance for Horticulture applications
CONTACT US!

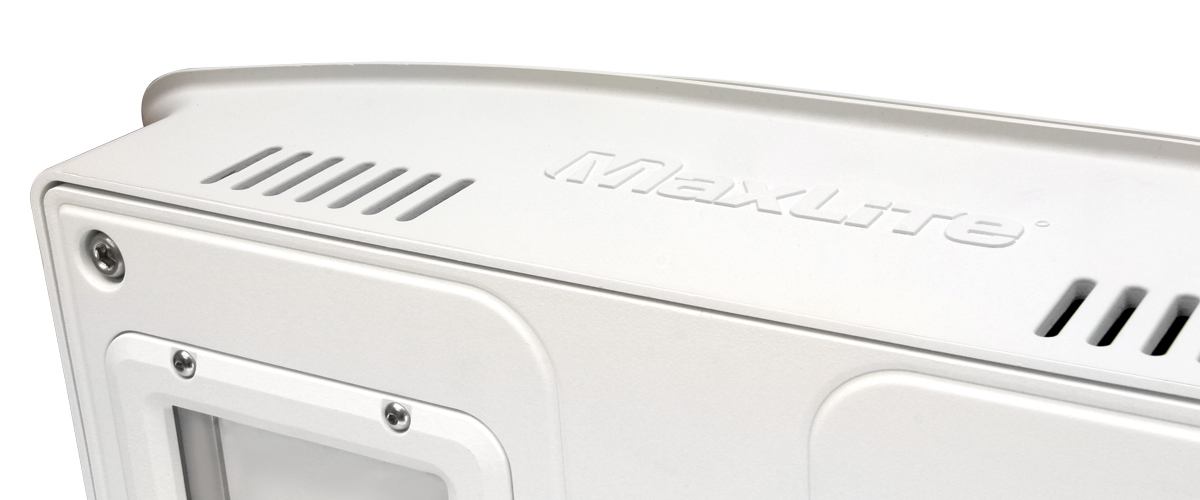

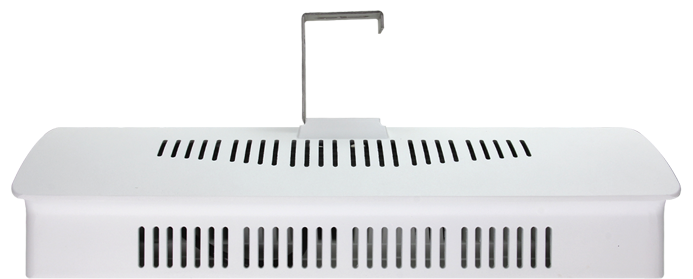

Minimal Shading
- Small footprint & low profile allow for optimal natural light contribution in greenhouses
- One of the smallest fixtures in the industry w/ only 1,570 cu in.
CONTACT US!

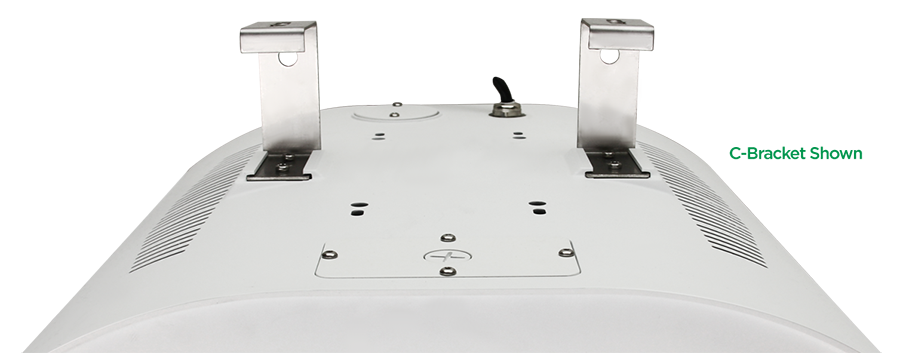

Easy Installation
- A slim form factor and light weight design offers ease of installation for large scale use with multiple mounting options
• C-Bracket
• Chain
• Aircraft Cable
CONTACT US!
Applications
Defining what makes a successful lighting plan can have many variables that are not consistent from customer to customer.  Whether your number one goal is reducing wattage, or improving lighting uniformity on the crop; discussing your lighting goals, production practices, and key factors in your operation up front, helps MaxLite ensure the best scenario and cost-effective plan for your operation, taking a personal approach.

Application Types

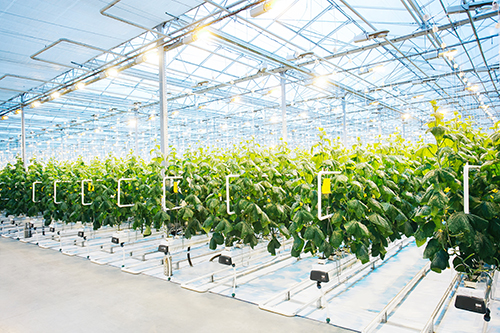

Indoor Crops

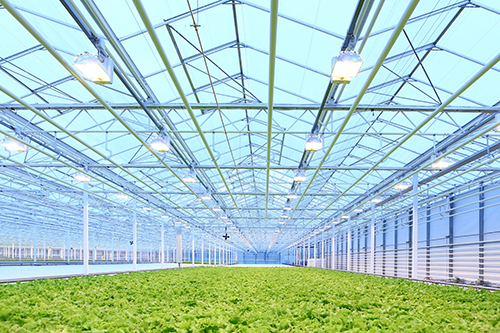

Greenhouse

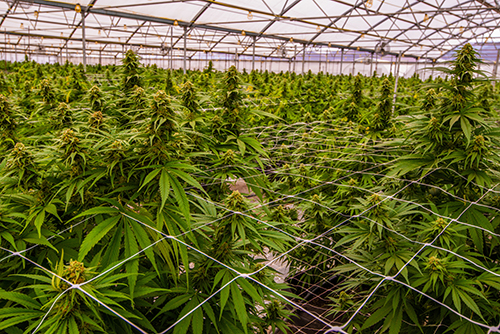

Medicinal Crops

Lighting Design

MaxLite’s Applications team uses Industry leading AGI32 and DIALux Software for lighting planning, and all layouts are done in PPFD.

Lighting Planning Services Overview:
· Contact us today for Free Consultation @ mstruck@maxlite.com
· No limit to revisions
· Applications Include
   -  Greenhouse
   -  Indoor Crops
   -  Vertical Farming
PhotonMax Rebates
Choose a product from the dropdown menu below then click on the interactive map to see what utility rebates are available for that product in that state.




Industry Leading
Warranty

Fixtures are designed to easily mount on strut and the drivers remain on board reducing labor costs while providing a cleaner installation. 2 300w fixtures placed over a 4x4’ footprint provides 800+ umol for cannabis or other hard flowering indoor crops and does so using 50+ less watts than other single fixture designs.
